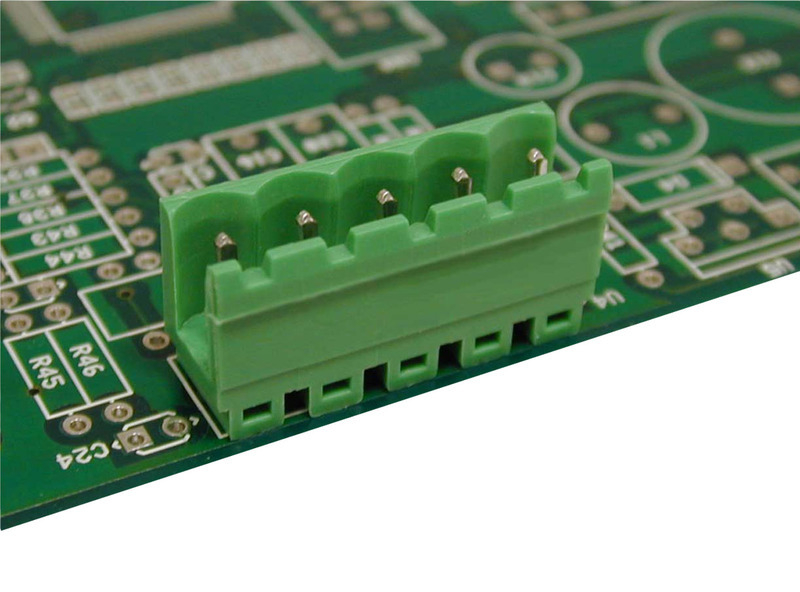

Vertical Male 5.08mm Pitch Plug In Terminal Blocks Open End

Descriptions

• 5.08mm Plug in connectors
• 2-24 pole solid block
• Pluggable male connec tors
• Open headers
• Vertical male plugs
• Polarisedmouldings
• Moulded in green UL94-V0 flame retardant PA
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Colour	Amperage	Poles	Materials (Body)	Cable Size, Flexible (mm2)	Cable Size, Solid (mm2)	Voltage	Pitch	Materials (Terminals)	Operating Temperature	Price
PV12-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 12 POLE	Green	12 AMPS	12	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV24-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 24 POLE	Green	12 AMPS	24	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV23-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 23 POLE	Green	12 AMPS	23	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV22-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 22 POLE	Green	12 AMPS	22	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV21-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 21 POLE	Green	12 AMPS	21	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV20-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 20 POLE	Green	12 AMPS	20	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV19-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 19 POLE	Green	12 AMPS	19	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV18-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 18 POLE	Green	12 AMPS	18	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV17-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 17 POLE	Green	12 AMPS	17	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV16-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 16 POLE	Green	12 AMPS	16	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV15-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 15 POLE	Green	12 AMPS	15	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV14-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 14 POLE	Green	12 AMPS	14	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV13-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 13 POLE	Green	12 AMPS	13	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PDSV02-5.08-V	EUROCLAMP PLUGIN PC CONNECTOR VERTICAL 5.08m DUAL ROW 2W	Green	12 AMPS	2	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV11-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 11 POLE	Green	12 AMPS	11	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV10-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 10 POLE	Green	12 AMPS	10	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV09-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 9 POLE	Green	12 AMPS	9	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV08-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 8 POLE	Green	12 AMPS	8	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV07-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 7 POLE	Green	12 AMPS	7	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV06-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 6 POLE	Green	12 AMPS	6	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV05-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 5 POLE	Green	12 AMPS	5	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV04-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 4 POLE	Green	12 AMPS	4	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV03-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 3 POLE	Green	12 AMPS	3	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV02-508-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 5.08mm 2 POLE	Green	12 AMPS	2	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PDSV03-5.08-V	EUROCLAMP PLUGIN PC CONNECTOR VERTICAL 5.08m DUAL ROW 3W	Green	12 AMPS	3	PA - UL 94 V0	N/A	N/A	250V	5.08mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
