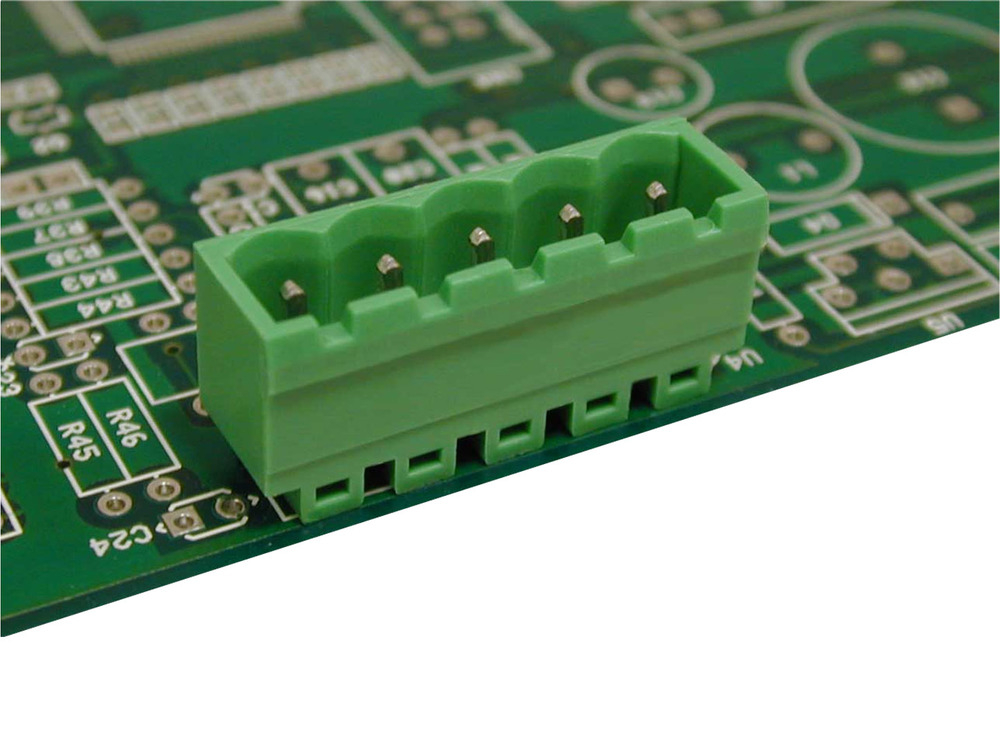

Vertical Male 5.08mm Pitch Plug In Terminal Blocks Closed End

Vertical Male 5.08mm Pitch Plug In Terminal Blocks Closed End

• 5.08mm Plug in connectors
• 2-24 pole solid block
• Pluggable male connectors
• Closed headers
• Vertical male plugs
• Polarised mouldings
• Moulded in green UL94-V0 flame retardant PA
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours available upon request

No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Cable Size, Flexible (mm2) Operating Temperature Materials (Terminals) Pitch Voltage Cable Size, Solid (mm2) Materials (Body) Poles Amperage Colour Price
PV13-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 13 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 13 12 AMPS Green
PV24-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 24 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 24 12 AMPS Green
PV23-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 23 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 23 12 AMPS Green
PV22-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 22 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 22 12 AMPS Green
PV21-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 21 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 21 12 AMPS Green
PV20-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 20 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 20 12 AMPS Green
PV19-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 19 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 19 12 AMPS Green
PV18-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 18 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 18 12 AMPS Green
PV17-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 17 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 17 12 AMPS Green
PV16-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 16 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 16 12 AMPS Green
PV15-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 15 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 15 12 AMPS Green
PV14-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 14 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 14 12 AMPS Green
PV02-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 508mm 2 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 2 12 AMPS Green
PV12-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 12 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 12 12 AMPS Green
PV11-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 11 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 11 12 AMPS Green
PV10-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 10 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 10 12 AMPS Green
PV09-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 9 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 9 12 AMPS Green
PV08-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 8 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 8 12 AMPS Green
PV07-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 7 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 7 12 AMPS Green
PV06-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 6 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 6 12 AMPS Green
PV05-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 5 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 5 12 AMPS Green
PV04-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 4 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 4 12 AMPS Green
PV03-508-V-P EUROCLAMP PCB CLOSED HEADER VERTICAL 16A 5.08mm 3 POLE N/A -40 to +130℃ Tin-plated copper alloy 5.08mm 250V N/A PA - UL 94 V0 3 12 AMPS Green
