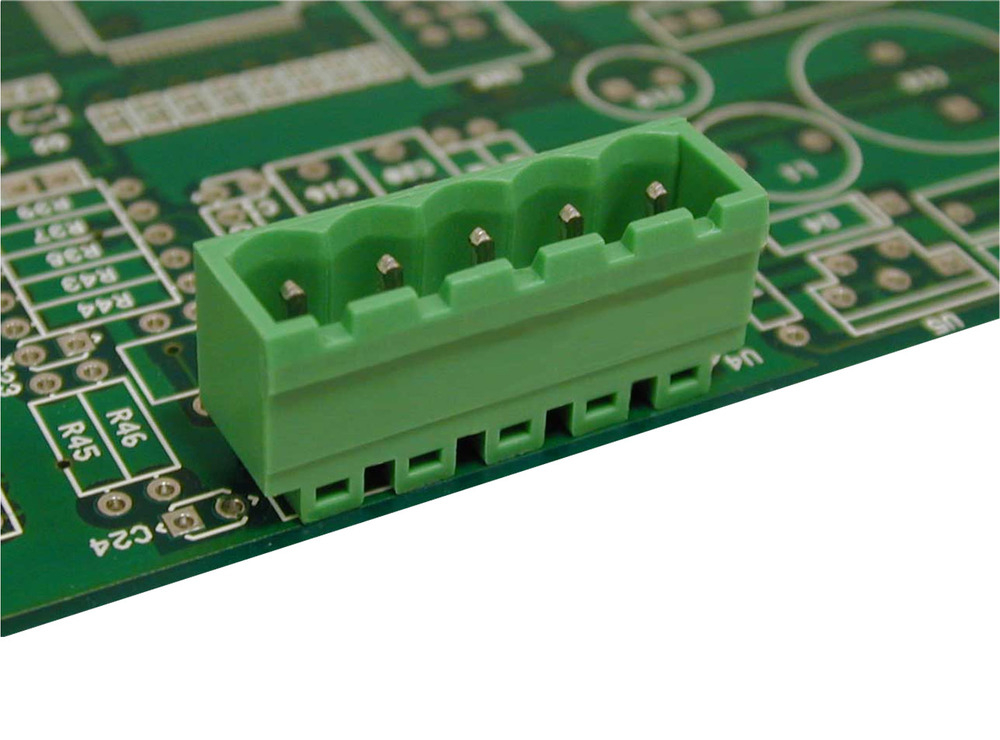

Vertical Male 3.81mm Pitch Plug In Terminal Blocks Closed End

Descriptions

• 3.81mm Plug in connectors
• 2-24 pole solid block
• Pluggable male connectors
• Closed headers
• Vertical male plugs
• Polarised mouldings
• Moulded in green UL94-V0 flame retardant PA
• Guided pin alignment
• UL approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
PV13-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 13 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	13	8 AMPS	Green	Please login to see prices.
PV24-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 24 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	24	8 AMPS	Green	Please login to see prices.
PV23-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 23 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	23	8 AMPS	Green	Please login to see prices.
PV22-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 22 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	22	8 AMPS	Green	Please login to see prices.
PV21-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 21 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	21	8 AMPS	Green	Please login to see prices.
PV20-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 20 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	20	8 AMPS	Green	Please login to see prices.
PV19-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 19 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	19	8 AMPS	Green	Please login to see prices.
PV18-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 18 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	18	8 AMPS	Green	Please login to see prices.
PV17-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 17 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	17	8 AMPS	Green	Please login to see prices.
PV16-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 16 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	16	8 AMPS	Green	Please login to see prices.
PV15-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 15 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	15	8 AMPS	Green	Please login to see prices.
PV14-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 14 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	14	8 AMPS	Green	Please login to see prices.
PV02-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 2 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	2	8 AMPS	Green	Please login to see prices.
PV12-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 12 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	12	8 AMPS	Green	Please login to see prices.
PV11-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 11 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	11	8 AMPS	Green	Please login to see prices.
PV10-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 10 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	10	8 AMPS	Green	Please login to see prices.
PV09-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 9 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	9	8 AMPS	Green	Please login to see prices.
PV08-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 8 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	8	8 AMPS	Green	Please login to see prices.
PV07-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 7 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	7	8 AMPS	Green	Please login to see prices.
PV06-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 6 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	6	8 AMPS	Green	Please login to see prices.
PV05-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 5 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	5	8 AMPS	Green	Please login to see prices.
PV04-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 4 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	4	8 AMPS	Green	Please login to see prices.
PV03-3.81-V-P	EUROCLAMP PCB CLOSED HEADER VERTICAL 8A 3.81mm 3 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	N/A	PA - UL 94 V0	3	8 AMPS	Green	Please login to see prices.
