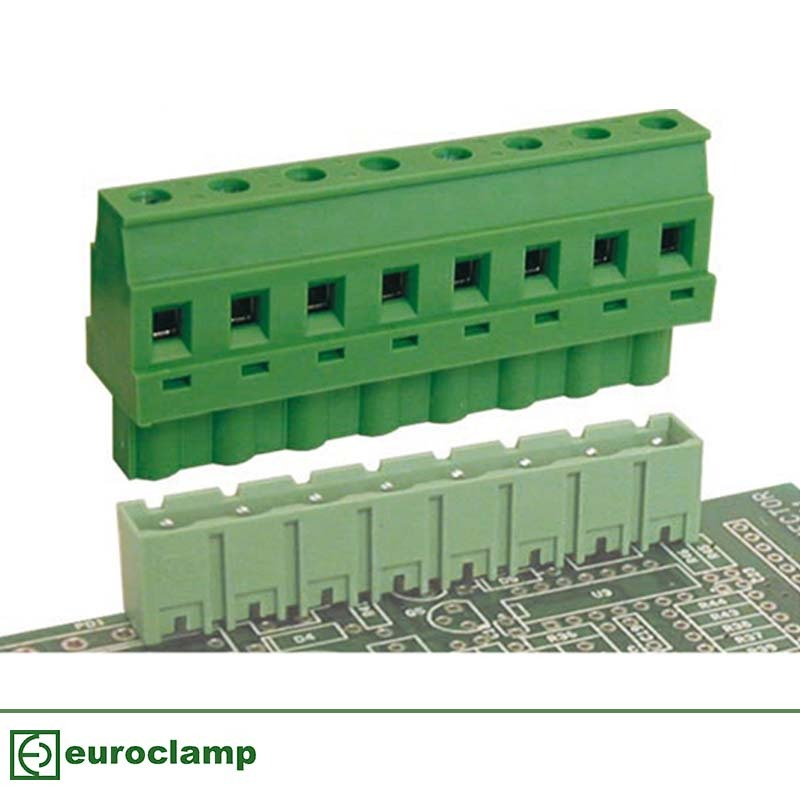

Vertical Female 7.5mm Pitch Plug In Terminal Blocks

Descriptions

• 7.5mm Plug in connectors
• 2-11 pole solid block
• Pluggable female connectors
• Vertical female plugs
• Polarised mouldings
• Moulded in green UL94-V0 flame retardant PA
• Professional rising clamp terminals
• Captive screws
• Guided pin alignment

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
SV02-7.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 7.50mm 2 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	2.5	PA - UL 94 V0	2	16 AMPS	Green	Please login to see prices.
SV03-7.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 7.50mm 3 POLE	2.5	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	2.5	PA - UL 94 V1	3	16 AMPS	Green	Please login to see prices.
