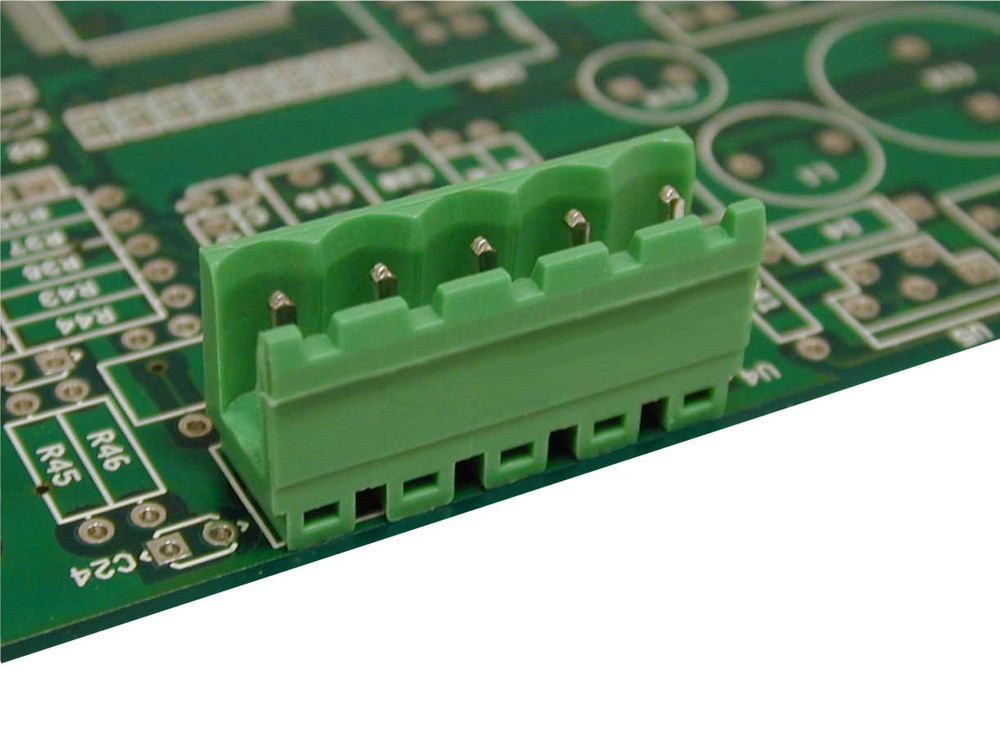

Vertical 7.5mm Pitch Plug In Terminal Blocks Open End

Descriptions

• 7.5mm Plug in connectors
• 2-16 pole solid block
• Pluggable male connectors
• Open headers
• Vertical male plugs
• Polarised mouldings
• Moulded in green UL94-V0 flame retardant PA
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
PV02-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.62mm 2 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	2	15 AMPS	Green	Please login to see prices.
PV03-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 3 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	3	15 AMPS	Green	Please login to see prices.
PV04-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 4 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	4	15 AMPS	Green	Please login to see prices.
PV05-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 5 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	5	15 AMPS	Green	Please login to see prices.
PV06-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 6 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	6	15 AMPS	Green	Please login to see prices.
PV07-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 7 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	7	15 AMPS	Green	Please login to see prices.
PV08-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 8 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	8	15 AMPS	Green	Please login to see prices.
PV09-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 9 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	9	15 AMPS	Green	Please login to see prices.
PV10-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 10 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	10	15 AMPS	Green	Please login to see prices.
PV11-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 11 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	11	15 AMPS	Green	Please login to see prices.
PV12-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 12 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	12	15 AMPS	Green	Please login to see prices.
PV13-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 13 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	13	15 AMPS	Green	Please login to see prices.
PV14-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 14 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	14	15 AMPS	Green	Please login to see prices.
PV15-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 15 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	15	15 AMPS	Green	Please login to see prices.
PV16-7.50-V	EUROCLAMP PCB OPEN HEADER VERTICAL 16A 7.5mm 16 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.5mm	500V	N/A	PA - UL 94 V0	16	15 AMPS	Green	Please login to see prices.
