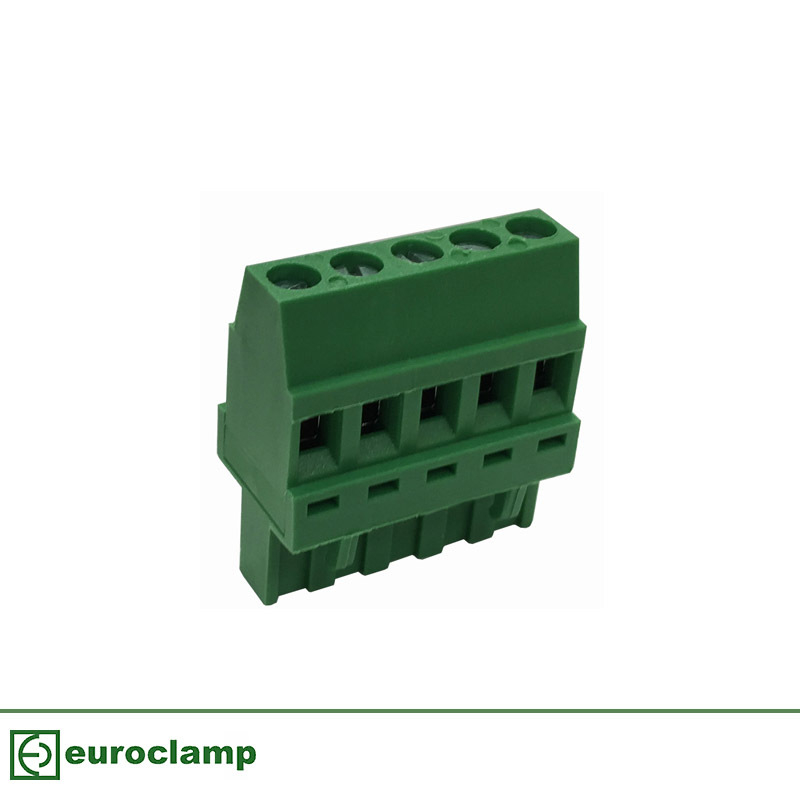

Reversed vertical 10.16mm Pitch Plug In Terminal Blocks

Descriptions

No detailed description is available for this product.

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Colour	Amperage	Poles	Materials (Body)	Cable Size, Flexible (mm2)	Cable Size, Solid (mm2)	Voltage	Pitch	Materials (Terminals)	Operating Temperature	Price
SV02-10.16-F	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 10.16mm 2 POLE	Green	15 AMPS	2	PA - UL 94 V0	2.5	4	500V	10.16mm	Nickeled copper alloy	-40 to +130℃	Please login to see prices.
SV03-10.16-F	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 10.16mm 3 POLE	Green	15 AMPS	3	PA - UL 94 V0	2.5	4	500V	10.16mm	Nickeled copper alloy	-40 to +130℃	Please login to see prices.
SV04-10.16-F	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 10.16mm 4 POLE	Green	15 AMPS	4	PA - UL 94 V0	2.5	4	500V	10.16mm	Nickeled copper alloy	-40 to +130℃	Please login to see prices.
SV05-10.16-F	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 10.16mm 5 POLE	Green	15 AMPS	5	PA - UL 94 V0	2.5	4	500V	10.16mm	Nickeled copper alloy	-40 to +130℃	Please login to see prices.
SV06-10.16-F	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 10.16mm 6 POLE	Green	15 AMPS	6	PA - UL 94 V0	2.5	4	500V	10.16mm	Nickeled copper alloy	-40 to +130℃	Please login to see prices.
SV07-10.16-F	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 10.16mm 7 POLE	Green	15 AMPS	7	PA - UL 94 V0	2.5	4	500V	10.16mm	Nickeled copper alloy	-40 to +130℃	Please login to see prices.
SV08-10.16-F	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 10.16mm 8 POLE	Green	15 AMPS	8	PA - UL 94 V0	2.5	4	500V	10.16mm	Nickeled copper alloy	-40 to +130℃	Please login to see prices.
SV09-10.16-F	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 10.16mm 9 POLE	Green	15 AMPS	9	PA - UL 94 V0	2.5	4	500V	10.16mm	Nickeled copper alloy	-40 to +130℃	Please login to see prices.
SV10-10.16-F	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 10.16mm 10 POLE	Green	15 AMPS	10	PA - UL 94 V0	2.5	4	500V	10.16mm	Nickeled copper alloy	-40 to +130℃	Please login to see prices.
SV11-10.16-F	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 10.16mm 11 POLE	Green	15 AMPS	11	PA - UL 94 V0	2.5	4	500V	10.16mm	Nickeled copper alloy	-40 to +130℃	Please login to see prices.
SV12-10.16-F	EUROCLAMP PLUGIN CONNECTOR VERTICAL 16A 10.16mm 12 POLE	Green	15 AMPS	12	PA - UL 94 V0	2.5	4	500V	10.16mm	Nickeled copper alloy	-40 to +130℃	Please login to see prices.
