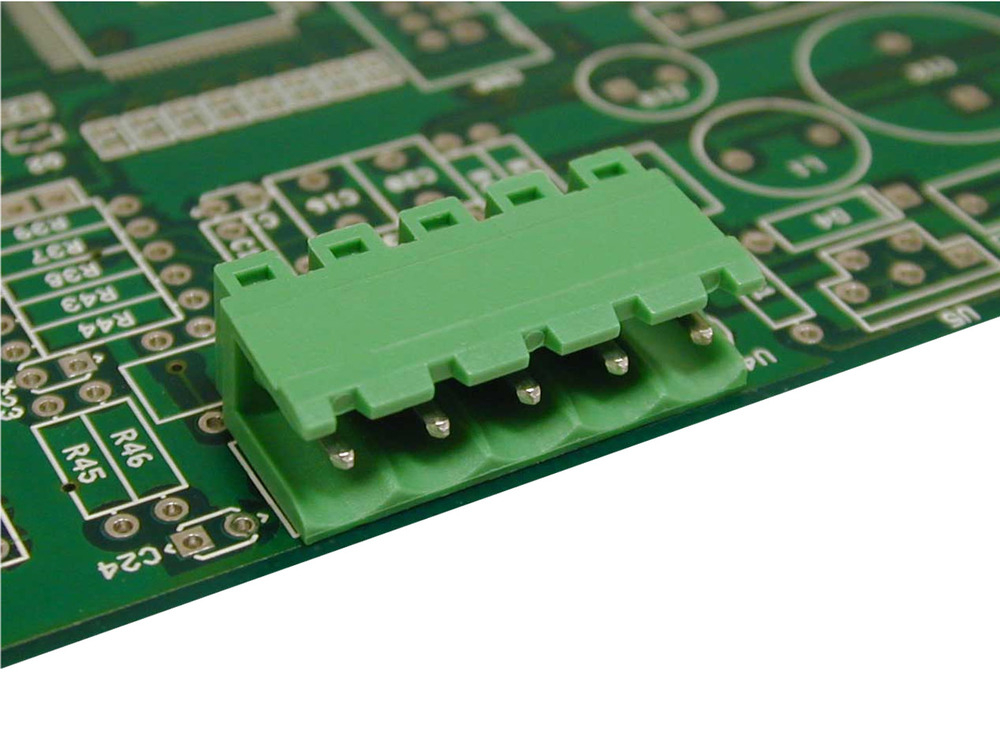

Horizontal Male 7.62mm Pitch Plug In Terminal Blocks Open End

Descriptions

• 7.62mm Plug in connectors
• 2-16 pole solid block
• Pluggable male connectors
• Open headers
• Horizontal male plugs
• Polarised mouldings
• Moulded in green UL94-V0 flame retardant PA
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
PV02-7.62-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 7.62mm 2 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.62mm	500V	N/A	PA - UL 94 V0	2	15 AMPS	Green	Please login to see prices.
PV03-7.62-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 7.62mm 3 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.62mm	500V	N/A	PA - UL 94 V0	3	15 AMPS	Green	Please login to see prices.
PV04-7.62-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 7.62mm 4 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.62mm	500V	N/A	PA - UL 94 V0	4	15 AMPS	Green	Please login to see prices.
PV05-7.62-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 7.62mm 5 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.62mm	500V	N/A	PA - UL 94 V0	5	15 AMPS	Green	Please login to see prices.
PV06-7.62-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 7.62mm 6 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.62mm	500V	N/A	PA - UL 94 V0	6	15 AMPS	Green	Please login to see prices.
PV07-7.62-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 7.62mm 7 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.62mm	500V	N/A	PA - UL 94 V0	7	15 AMPS	Green	Please login to see prices.
PV08-7.62-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 7.62mm 8 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.62mm	500V	N/A	PA - UL 94 V0	8	15 AMPS	Green	Please login to see prices.
PV09-7.62-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 7.62mm 9 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.62mm	500V	N/A	PA - UL 94 V0	9	15 AMPS	Green	Please login to see prices.
PV10-7.62-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 7.62mm 10 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.62mm	500V	N/A	PA - UL 94 V0	10	15 AMPS	Green	Please login to see prices.
PV11-7.62-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 7.62mm 11 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.62mm	500V	N/A	PA - UL 94 V0	11	15 AMPS	Green	Please login to see prices.
PV12-7.62-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 7.62mm 12 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	7.62mm	500V	N/A	PA - UL 94 V0	12	15 AMPS	Green	Please login to see prices.
