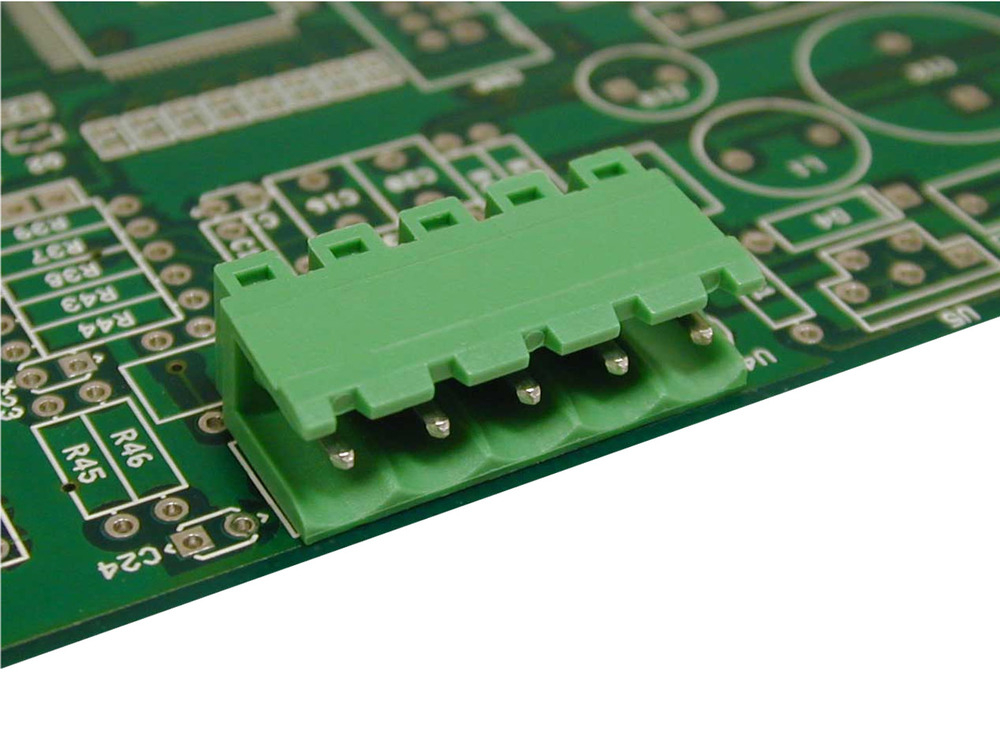

Horizontal Male 5mm Pitch Plug In Terminal Blocks Open End

Descriptions

• 5.00mm Plug in connectors
• 2-24 pole solid block
• Pluggable male connectors
• Open headers
• Horizontal male plugs
• Polarised mouldings
• Moulded in green UL94-V0 flame retardant PA
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Colour	Amperage	Poles	Materials (Body)	Cable Size, Flexible (mm2)	Cable Size, Solid (mm2)	Voltage	Pitch	Materials (Terminals)	Operating Temperature	Price
PV13-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 13 POLE	Green	12 AMPS	13	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV24-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 24 POLE	Green	12 AMPS	24	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV23-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 23 POLE	Green	12 AMPS	23	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV22-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 22 POLE	Green	12 AMPS	22	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV21-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 21 POLE	Green	12 AMPS	21	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV20-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 20 POLE	Green	12 AMPS	20	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV19-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 19 POLE	Green	12 AMPS	19	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV18-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 18 POLE	Green	12 AMPS	18	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV17-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 17 POLE	Green	12 AMPS	17	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV16-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 16 POLE	Green	12 AMPS	16	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV15-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 15 POLE	Green	12 AMPS	15	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV14-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 14 POLE	Green	12 AMPS	14	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV02-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 2 POLE	Green	12 AMPS	2	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV12-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 12 POLE	Green	12 AMPS	12	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV11-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 11 POLE	Green	12 AMPS	11	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV10-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 10 POLE	Green	12 AMPS	10	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV09-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 9 POLE	Green	12 AMPS	9	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV08-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 8 POLE	Green	12 AMPS	8	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV07-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 7 POLE	Green	12 AMPS	7	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV06-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 6 POLE	Green	12 AMPS	6	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV05-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 5 POLE	Green	12 AMPS	5	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV04-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 4 POLE	Green	12 AMPS	4	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
PV03-5.00-H	EUROCLAMP PCB OPEN HEADER HORIZONTAL 16A 5mm 3 POLE	Green	12 AMPS	3	PA - UL 94 V0	N/A	N/A	250V	5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
