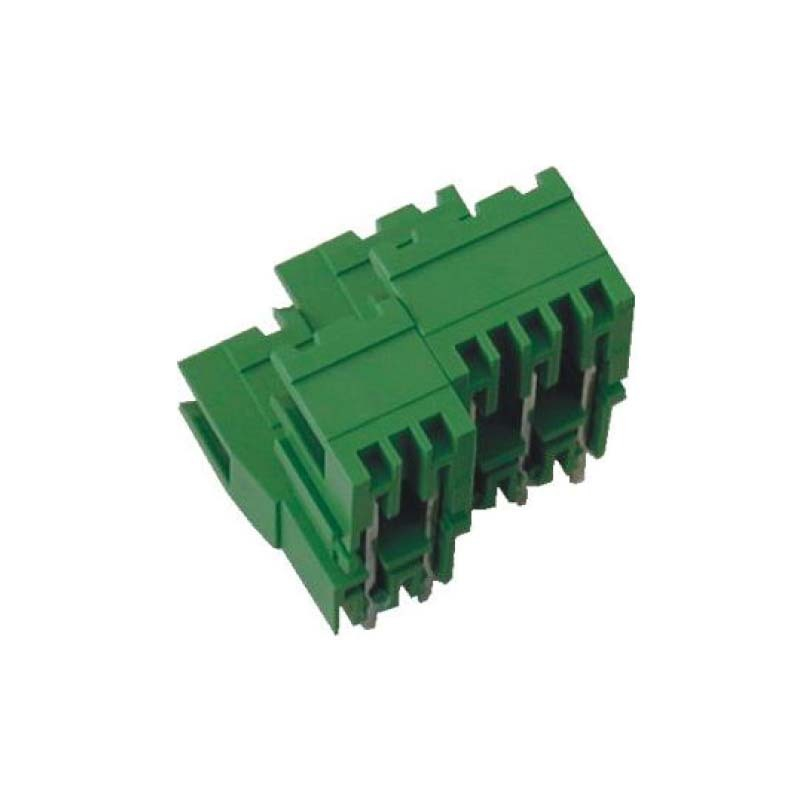

Horizontal Male 5.08mm Pitch Plug In Terminal Blocks Open End

Descriptions

• 5.08mm Plug in connectors
• 2-24 pole solid block
• Pluggable male connectors
• Double Layer
• Open headers
• Horizontalmale plugs
• Polarised mouldings
• Moulded in green UL94-V0 flame retardant PA
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
PDSV02-5.08-H	EUROCLAMP PLUGIN PC CONNECTOR HORIZONTAL 5.08m DUAL ROW 2W	N/A	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	2	12 AMPS	Green	Please login to see prices.
PDSV03-5.08-H	EUROCLAMP PLUGIN PC CONNECTOR HORIZONTAL 5.08m DUAL ROW 3W	N/A	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	3	12 AMPS	Green	Please login to see prices.
