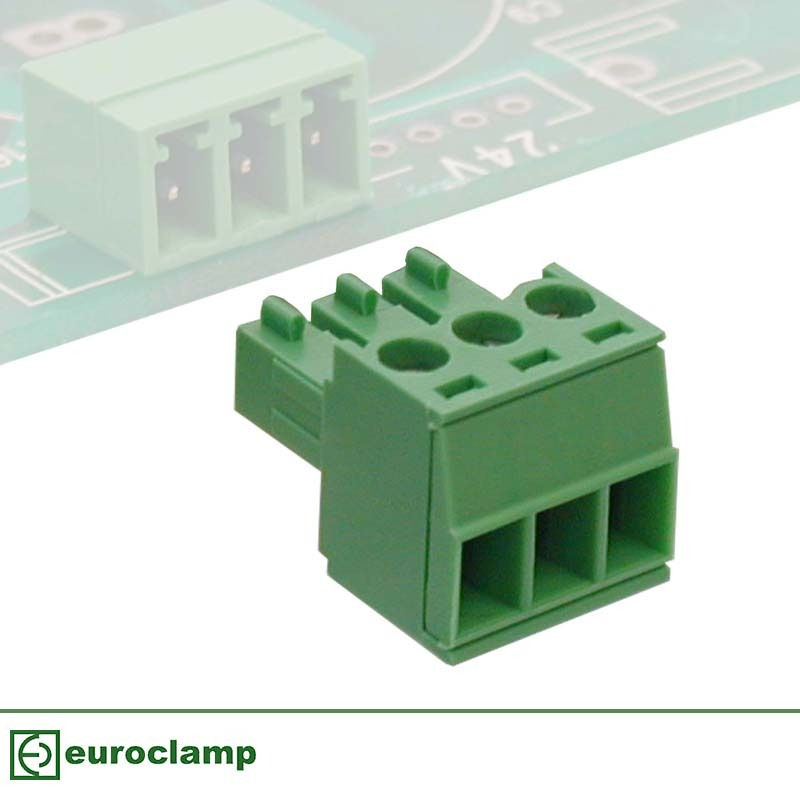

Horizontal Female 5.08mm Pitch Plug In Terminal Blocks

Descriptions

• 5.08mm Plug in connectors
• 2-24 pole solid block
• Pluggable female connectors
• Horizontal female plugs
• Polarised mouldings
• Moulded in green UL94-V0 flame retardant PA
• Professional rising clamp terminals
• Captive screws
• Guided pin alignment
• IMQ, VDE, UL approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
SH13-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 13 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	13	10 AMPS	Green	Please login to see prices.
SH24-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 24 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	24	10 AMPS	Green	Please login to see prices.
SH23-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 23 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	23	10 AMPS	Green	Please login to see prices.
SH22-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 22 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	22	10 AMPS	Green	Please login to see prices.
SH21-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 21 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	21	10 AMPS	Green	Please login to see prices.
SH20-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 20 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	20	10 AMPS	Green	Please login to see prices.
SH19-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 19 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	19	10 AMPS	Green	Please login to see prices.
SH18-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 18 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	18	10 AMPS	Green	Please login to see prices.
SH17-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 17 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	17	10 AMPS	Green	Please login to see prices.
SH16-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 16 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	16	10 AMPS	Green	Please login to see prices.
SH15-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 15 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	15	10 AMPS	Green	Please login to see prices.
SH14-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 14 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	14	10 AMPS	Green	Please login to see prices.
SH02-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 2 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	2	10 AMPS	Green	Please login to see prices.
SH12-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 12 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	12	10 AMPS	Green	Please login to see prices.
SH11-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 11 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	11	10 AMPS	Green	Please login to see prices.
SH10-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 10 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	10	10 AMPS	Green	Please login to see prices.
SH09-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 9 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	9	10 AMPS	Green	Please login to see prices.
SH08-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 8 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	8	10 AMPS	Green	Please login to see prices.
SH07-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 7 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	7	10 AMPS	Green	Please login to see prices.
SH06-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 6 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	6	10 AMPS	Green	Please login to see prices.
SH05-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 5 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	5	10 AMPS	Green	Please login to see prices.
SH04-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 4 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	4	10 AMPS	Green	Please login to see prices.
SH03-508	EUROCLAMP PLUGIN CONNECTOR HORIZONTAL 16A 5.08mm 3 POLE	2.5	-40 to +130℃	Nickeled copper alloy	5.08mm	250V	4	PA - UL 94 V0	3	10 AMPS	Green	Please login to see prices.
