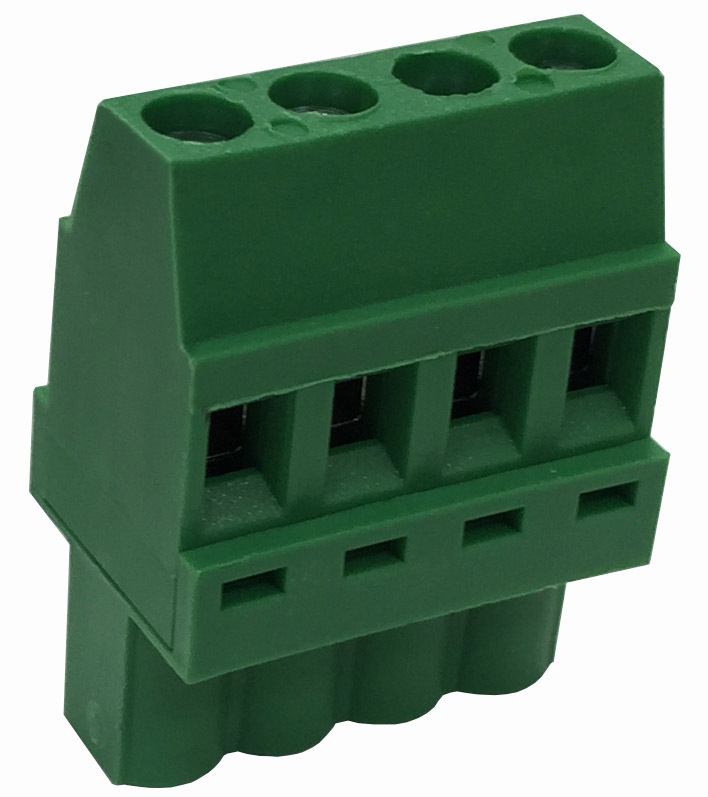

Forward Vertical 3.81mm Pitch Plug In Terminal Blocks

Descriptions

• 3.81mm Plug in connectors
• 2-24 pole solid block
• Pluggable female connectors
• Vertical female plugs
• Polarised mouldings
• Moulded in greenUL94-V0 flame retardant PA
• Professional rising clamp terminals
• Captive screws
• Guided pin alignment
• UL approved

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
SV13-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 13 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	13	8 AMPS	Green	Please login to see prices.
SV24-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 24 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	24	8 AMPS	Green	Please login to see prices.
SV23-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 23 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	23	8 AMPS	Green	Please login to see prices.
SV22-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 22 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	22	8 AMPS	Green	Please login to see prices.
SV21-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 21 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	21	8 AMPS	Green	Please login to see prices.
SV20-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 20 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	20	8 AMPS	Green	Please login to see prices.
SV19-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 19 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	19	8 AMPS	Green	Please login to see prices.
SV18-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 18 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	18	8 AMPS	Green	Please login to see prices.
SV17-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 17 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	17	8 AMPS	Green	Please login to see prices.
SV16-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 16 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	16	8 AMPS	Green	Please login to see prices.
SV15-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 15 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	15	8 AMPS	Green	Please login to see prices.
SV14-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 14 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	14	8 AMPS	Green	Please login to see prices.
SV02-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 2 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	2	8 AMPS	Green	Please login to see prices.
SV12-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 12 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	12	8 AMPS	Green	Please login to see prices.
SV11-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 11 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	11	8 AMPS	Green	Please login to see prices.
SV10-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 10 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	10	8 AMPS	Green	Please login to see prices.
SV09-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 9 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	9	8 AMPS	Green	Please login to see prices.
SV08-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 8 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	8	8 AMPS	Green	Please login to see prices.
SV07-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 7 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	7	8 AMPS	Green	Please login to see prices.
SV06-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 6 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	6	8 AMPS	Green	Please login to see prices.
SV05-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 5 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	5	8 AMPS	Green	Please login to see prices.
SV04-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 4 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	4	8 AMPS	Green	Please login to see prices.
SV03-3.81-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.81mm 3 POLE	1.5	-40 to +130℃	Tin-plated copper alloy	3.81mm	160V	1.5	PA - UL 94 V0	3	8 AMPS	Green	Please login to see prices.
