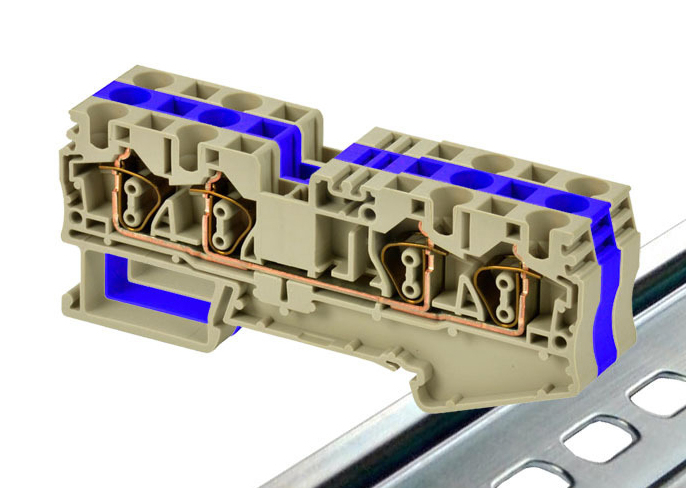

Feed Through Terminals - 4 Conductors

Feed Through Terminals - 4 Conductors

• Screwless 4 Conductor Din Rail Mount Terminal Blocks
• Available in sizes 1.5mm up to 6mm
• Spring Type: Easy, Fast Operation, strong Clamping Force
• Vibration Resistant
• Moulded in UL94-V0 flame retardant PA
• Available in Grey, Red, Blue, Black and Orange
• Suitable for Top Hat (Din 35) and G (Din 32) Style Din Rail Profiles
• VDE, cUL Ex approved
• Full range of accessories including End Covers, Insert Bridges, Marking Tags and Din Rail

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Colour Amperage Poles Materials (Body) Cable Size, Flexible (mm2) Cable Size, Solid (mm2) Voltage Pitch Dimensions (mm) Price
AK1.5-TR DINKLE SCREWLESS DIN TERM GREY 1.5MM 4 CONDUCTOR Grey 17.5 AMP 4 PA 0.14 - 1.5 0.14 - 1.5 630V N/A 4.2 x 35 x 72.6
AK1.5-TR-BL DINKLE SCREWLESS DIN TERM BLUE 1.5MM 4 CONDUCTOR Blue 17.5 AMP 4 PA 0.14 - 1.5 0.14 - 1.5 630V N/A 4.2 x 35 x 72.6
AK2.5-TR DINKLE SCREWLESS DIN TERM GREY 2.5MM 4 CONDUCTOR Grey 24 AMP 4 PA 0.2 - 2.5 0.2 - 2.5 800V N/A 5.1 x 35 x 72.6
AK2.5-TR-BL DINKLE SCREWLESS DIN TERM BLUE 2.5MM 4 CONDUCTOR Blue 24 AMP 4 PA 0.2 - 2.5 0.2 - 2.5 800V N/A 5.1 x 35 x 72.6
AK4-TR DINKLE SCREWLESS DIN TERM GREY 4MM 4 CONDUCTOR Grey 32 AMP 4 PA 0.2 - 4.0 0.2 - 4.0 800V N/A 6.1 x 35 x 88.0
AK4-TR-BL DINKLE SCREWLESS DIN TERM BLUE 4MM 4 CONDUCTOR Blue 32 AMP 4 PA 0.2 - 4.0 0.2 - 4.0 800V N/A 6.1 x 35 x 88.0
AK6-TR DINKLE SCREWLESS DIN TERM GREY 6MM 4 CONDUCTOR Grey 41 AMP 4 PA 0.5 - 6.0 0.5 - 6.0 800V N/A 8 x 42 x 111.5
AK6-TR-BL DINKLE SCREWLESS DIN TERM BLUE 6MM 4 CONDUCTOR Blue 41 AMP 4 PA 0.5 - 6.0 0.5 - 6.0 800V N/A 8 x 42 x 111.5
