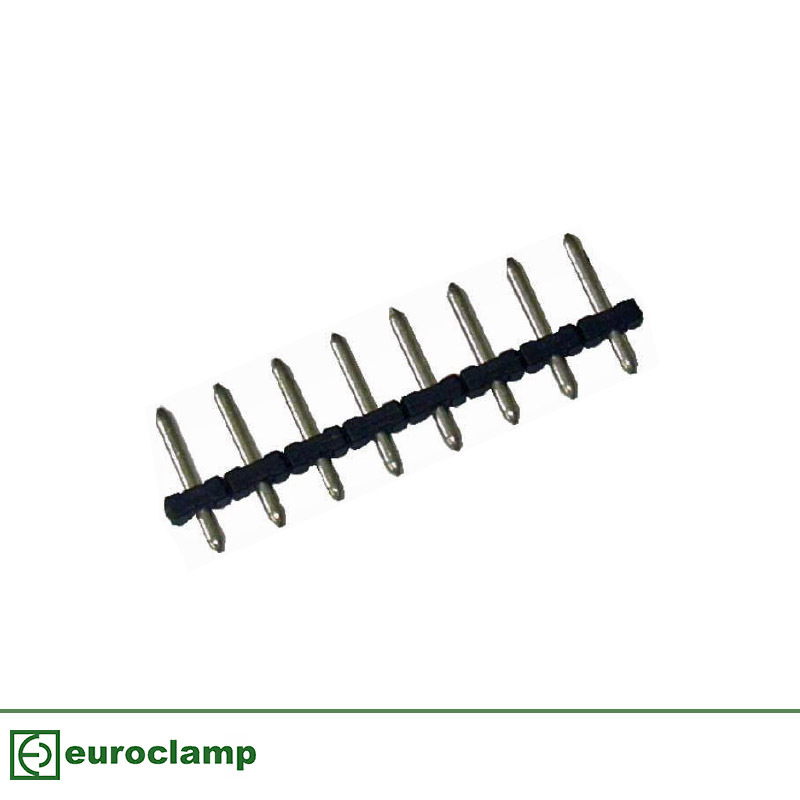

Male Pin Strip Headers

Descriptions

• 5.00mm Plug in connectors
• 2-24 pole
• Pluggable male connectors
• Polarised mouldings
• Captive screws
• Guided pin alignment
• UL approved

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
PVS13-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 13 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	13	10 AMPS	Green	Please login to see prices.
PVS24-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 24 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	24	10 AMPS	Green	Please login to see prices.
PVS23-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 23 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	23	10 AMPS	Green	Please login to see prices.
PVS22-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 22 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	22	10 AMPS	Green	Please login to see prices.
PVS21-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 21 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	21	10 AMPS	Green	Please login to see prices.
PVS20-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 20 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	20	10 AMPS	Green	Please login to see prices.
PVS19-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 19 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	19	10 AMPS	Green	Please login to see prices.
PVS18-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 18 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	18	10 AMPS	Green	Please login to see prices.
PVS17-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 17 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	17	10 AMPS	Green	Please login to see prices.
PVS16-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 16 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	16	10 AMPS	Green	Please login to see prices.
PVS15-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 15 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	15	10 AMPS	Green	Please login to see prices.
PVS14-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 14 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	14	10 AMPS	Green	Please login to see prices.
PVS02-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 2 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	2	10 AMPS	Green	Please login to see prices.
PVS12-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 12 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	12	10 AMPS	Green	Please login to see prices.
PVS11-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 11 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	11	10 AMPS	Green	Please login to see prices.
PVS10-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 10 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	10	10 AMPS	Green	Please login to see prices.
PVS09-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 9 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	9	10 AMPS	Green	Please login to see prices.
PVS08-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 8 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	8	10 AMPS	Green	Please login to see prices.
PVS07-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 7 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	7	10 AMPS	Green	Please login to see prices.
PVS06-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 6 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	6	10 AMPS	Green	Please login to see prices.
PVS05-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 5 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	5	10 AMPS	Green	Please login to see prices.
PVS04-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 4 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	4	10 AMPS	Green	Please login to see prices.
PVS03-5	EUROCLAMP MALE PIN STRIP VERTICAL 10A 5mm 3 POLE	N/A	-40 to +130℃	Tin-plated copper alloy	5mm	250V	N/A	PA - UL 94 V0	3	10 AMPS	Green	Please login to see prices.
