Stackable

Descriptions

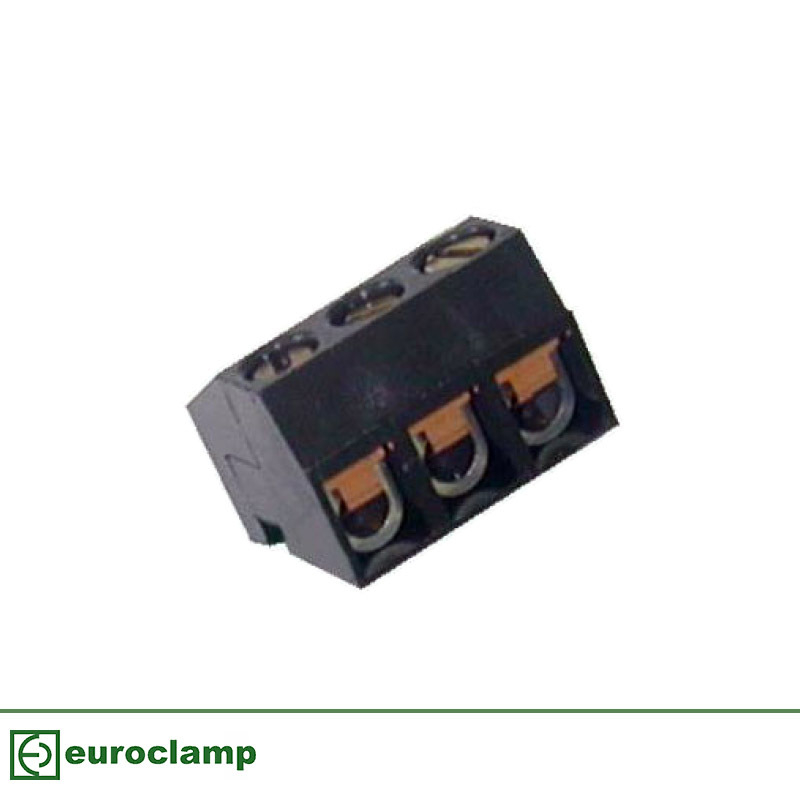

• 5.00mm Plug in connectors
• 2-3 pole solid block
• Pluggable female connectors
• Stackable female plugs
• Polarised mouldings
• Captive screws
• Guided pin alignment
• UL approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
SHS13-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 10mm PITCH 13P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	13	12 AMPS	Green	Please login to see prices.
SHS24-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 24P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	24	10 AMPS	Green	Please login to see prices.
SHS23-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 23P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	23	12 AMPS	Green	Please login to see prices.
SHS22-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 22P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	22	12 AMPS	Green	Please login to see prices.
SHS21-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 21P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	21	12 AMPS	Green	Please login to see prices.
SHS20-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 20P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	20	12 AMPS	Green	Please login to see prices.
SHS19-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 19P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	19	12 AMPS	Green	Please login to see prices.
SHS18-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 18P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	18	12 AMPS	Green	Please login to see prices.
SHS17-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 17P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	17	12 AMPS	Green	Please login to see prices.
SHS16-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 16P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	16	12 AMPS	Green	Please login to see prices.
SHS15-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 15P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	15	12 AMPS	Green	Please login to see prices.
SHS14-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 14P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	14	12 AMPS	Green	Please login to see prices.
SHS02-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 2P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	2	12 AMPS	Green	Please login to see prices.
SHS12-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 12P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	12	12 AMPS	Green	Please login to see prices.
SHS11-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 11P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	11	12 AMPS	Green	Please login to see prices.
SHS10-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 10P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	10	12 AMPS	Green	Please login to see prices.
SHS09-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 9 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	9	12 AMPS	Green	Please login to see prices.
SHS08-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 8P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	8	12 AMPS	Green	Please login to see prices.
SHS07-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 7P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	7	12 AMPS	Green	Please login to see prices.
SHS06-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 6P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	6	12 AMPS	Green	Please login to see prices.
SHS05-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 5P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	5	12 AMPS	Green	Please login to see prices.
SHS04-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 4P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	4	12 AMPS	Green	Please login to see prices.
SHS03-5-L	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 3P INTERLOCK	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	3	12 AMPS	Green	Please login to see prices.
