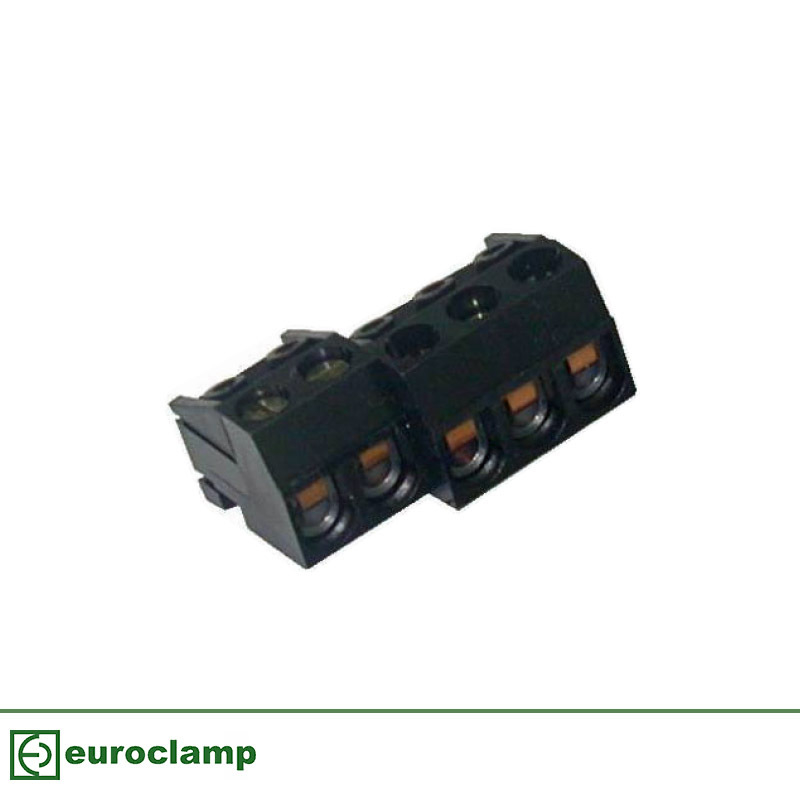

Mono Block

Descriptions

• 5.00mm Plug in connectors
• 2-3 pole solid block
• Pluggable female connectors
• Modular female plugs
• Polarised mouldings
• Captive screws
• Guided pin alignment
• UL approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
SHS14-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 14 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	14	10 AMPS	Green	Please login to see prices.
SHS24-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 24 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	24	10 AMPS	Green	Please login to see prices.
SHS23-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 23 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	23	10 AMPS	Green	Please login to see prices.
SHS22-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 22 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	22	10 AMPS	Green	Please login to see prices.
SHS21-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 21 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	21	10 AMPS	Green	Please login to see prices.
SHS20-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 20 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	20	10 AMPS	Green	Please login to see prices.
SHS19-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 19 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	19	10 AMPS	Green	Please login to see prices.
SHS18-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 18 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	18	10 AMPS	Green	Please login to see prices.
SHS17-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 17 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	17	10 AMPS	Green	Please login to see prices.
SHS16-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 16 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	16	10 AMPS	Green	Please login to see prices.
SHS15-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 15 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	15	10 AMPS	Green	Please login to see prices.
SHS03-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 3 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	3	10 AMPS	Green	Please login to see prices.
SHS13-5	EUROCLAMP PLUGIN CONNECTOR 10A 10mm PITCH 13 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	13	10 AMPS	Green	Please login to see prices.
SHS12-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 12 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	12	10 AMPS	Green	Please login to see prices.
SHS11-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 11 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	11	10 AMPS	Green	Please login to see prices.
SHS10-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 10 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	10	10 AMPS	Green	Please login to see prices.
SHS09-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 9 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	9	10 AMPS	Green	Please login to see prices.
SHS08-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 8 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	8	10 AMPS	Green	Please login to see prices.
SHS07-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 7 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	7	10 AMPS	Green	Please login to see prices.
SHS06-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 6 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	6	10 AMPS	Green	Please login to see prices.
SHS05-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 5 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	5	10 AMPS	Green	Please login to see prices.
SHS04-5	EUROCLAMP PLUGIN CONNECTOR 10A 5mm PITCH 4 POLE	1.5	-40 to +130℃	Copper alloy	5mm	250V	1.5	PA - UL 94 V0	4	10 AMPS	Green	Please login to see prices.
