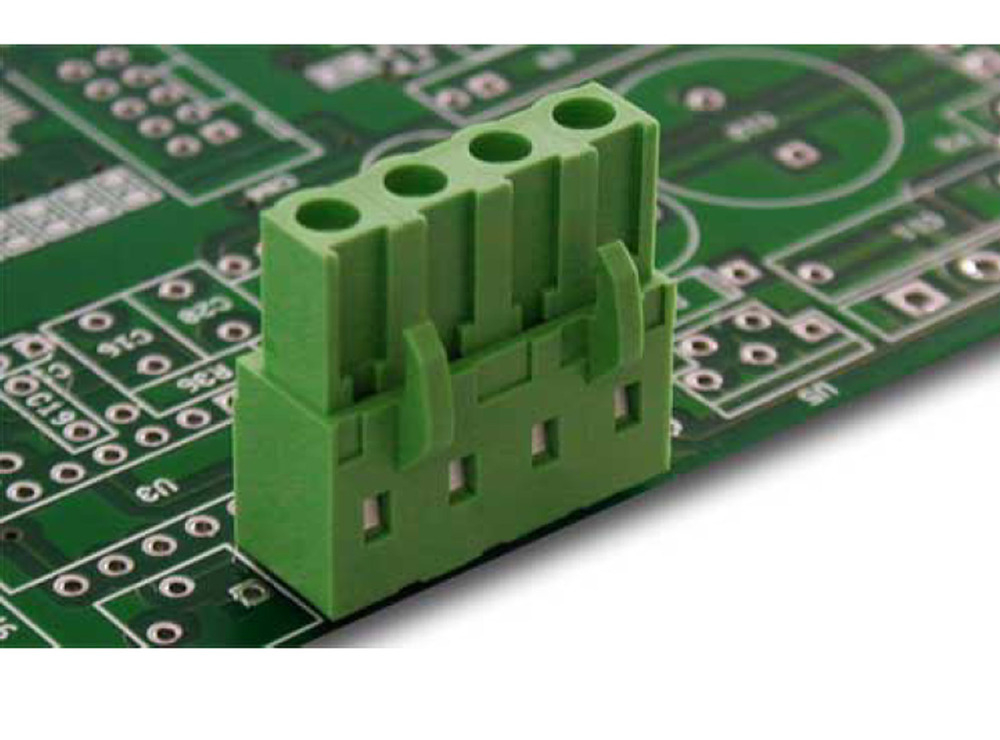

Vertical

Descriptions

• 5.08mm Plug in connectors
• 2-24 pole solid block
• Pluggable female connectors
• Vertical female plugs
• Polarised mouldings
• Moulded in greenUL94-V0 flame retardant PA
• Professional rising clamp terminals
• Captive screws
• Guided pin alignment

Specifications

No detailed specifications are available for this product.

Downloads

Click on any of the following links to download the file.

Data Sheet (pdf)

Code	Description	Cable Size, Flexible (mm2)	Operating Temperature	Materials (Terminals)	Pitch	Voltage	Cable Size, Solid (mm2)	Materials (Body)	Poles	Amperage	Colour	Price
PF02-508-V	EUROCLAMP PLUGIN CONNECTOR VERTICAL 5.08m DUAL ROW 2W	N/A	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	2	12 AMPS	Green	Please login to see prices.
PF03-508-V	EUROCLAMP PLUGIN CONNECTOR VERTICAL 5.08m DUAL ROW 3W	N/A	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	3	12 AMPS	Green	Please login to see prices.
PF04-508-V	EUROCLAMP PLUGIN CONNECTOR VERTICAL 5.08m DUAL ROW 4W	N/A	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	4	12 AMPS	Green	Please login to see prices.
PF08-508-V	EUROCLAMP PLUGIN CONNECTOR VERTICAL 5.08m DUAL ROW 8W	N/A	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	8	12 AMPS	Green	Please login to see prices.
PF09-508-V	EUROCLAMP PLUGIN CONNECTOR VERTICAL 5.08m DUAL ROW 9W	N/A	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	9	12 AMPS	Green	Please login to see prices.
PF12-508-V	EUROCLAMP PLUGIN CONNECTOR VERTICAL 5.08m DUAL ROW 12W	N/A	-40 to +130℃	Tin-plated copper alloy	5.08mm	250V	N/A	PA - UL 94 V0	12	12 AMPS	Green	Please login to see prices.
