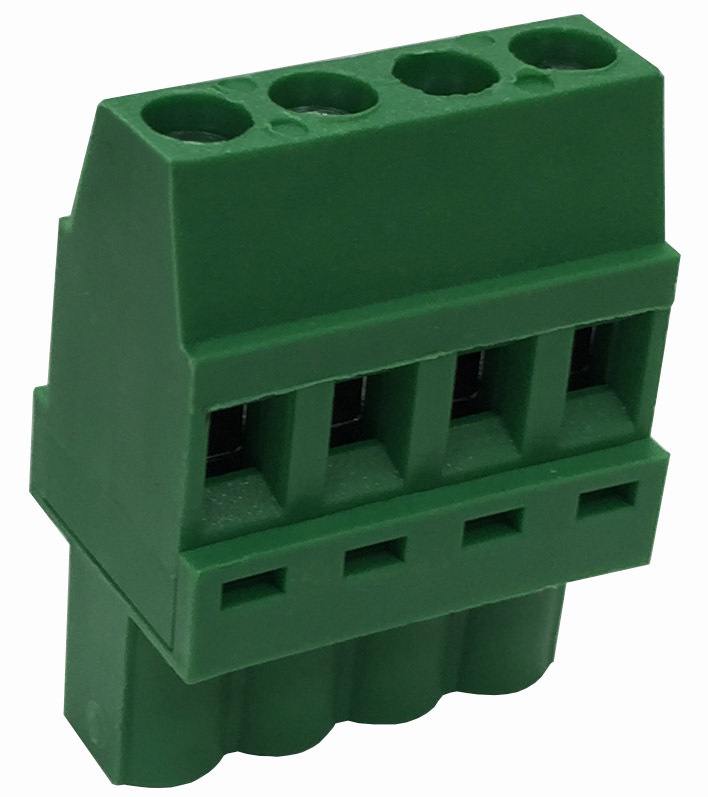

Back Vertical 3.5mm Pitch Plug In Terminal Blocks

Descriptions

• 3.5mm Plug in connectors
• 2-24 pole solid block
• Pluggable female connectors
• Vertical female plugs
• Polarised mouldings
• Moulded in green UL94-V0 flame retardant PA
• Professional rising clamp terminals
• Captive screws
• Guided pin alignment
• UL approved
• Alternative colours available upon request

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Colour	Amperage	Poles	Materials (Body)	Cable Size, Flexible (mm2)	Cable Size, Solid (mm2)	Voltage	Pitch	Materials (Terminals)	Operating Temperature	Price
SV13-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 13 POLE	Green	8 AMPS	13	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV24-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 24 POLE	Green	8 AMPS	24	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV23-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 23 POLE	Green	8 AMPS	23	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV22-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 22 POLE	Green	8 AMPS	22	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV21-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 21 POLE	Green	8 AMPS	21	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV20-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 20 POLE	Green	8 AMPS	20	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV19-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 19 POLE	Green	8 AMPS	19	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV18-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 18 POLE	Green	8 AMPS	18	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV17-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 17 POLE	Green	8 AMPS	17	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV16-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 16 POLE	Green	8 AMPS	16	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV15-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 15 POLE	Green	8 AMPS	15	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV14-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 14 POLE	Green	8 AMPS	14	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV02-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 2 POLE	Green	8 AMPS	2	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV12-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 12 POLE	Green	8 AMPS	12	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV11-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 11 POLE	Green	8 AMPS	11	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV10-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 10 POLE	Green	8 AMPS	10	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV09-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 9 POLE	Green	8 AMPS	9	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV08-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 8 POLE	Green	8 AMPS	8	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV07-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 7 POLE	Green	8 AMPS	7	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV06-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 6 POLE	Green	8 AMPS	6	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV05-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 5 POLE	Green	8 AMPS	5	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV04-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 4 POLE	Green	8 AMPS	4	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
SV03-3.50-P	EUROCLAMP PLUGIN CONNECTOR VERTICAL 8A 3.5mm 3 POLE	Green	8 AMPS	3	PA - UL 94 V0	1.5	1.5	160V	3.5mm	Tin-plated copper alloy	-40 to +130℃	Please login to see prices.
