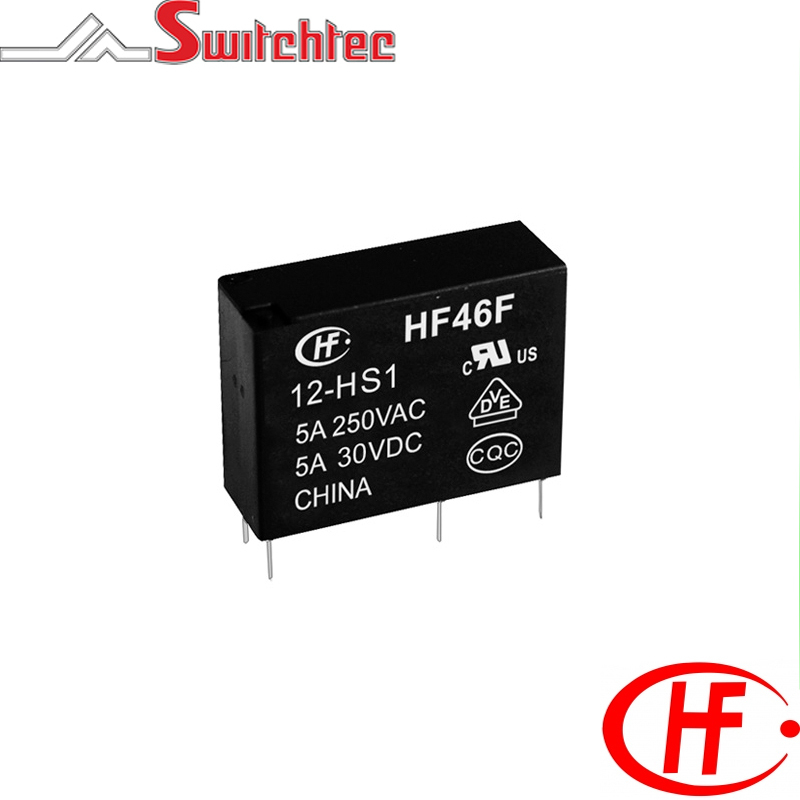

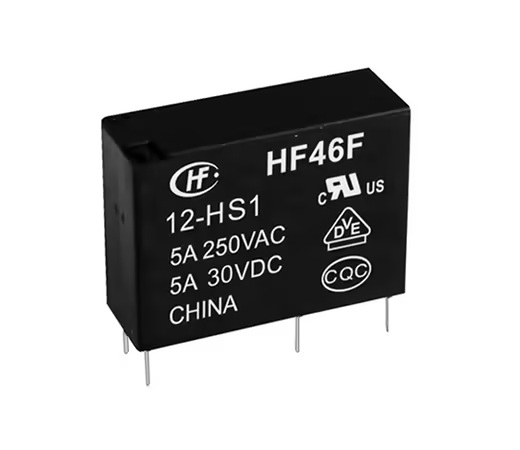

5 Amp 1 Pole Normally Open Relay - Standard Contacts

5 Amp 1 Pole Normally Open Relay - Standard Contacts


  • 5A Switching capability

  • 1 Form A contact

  • Wash tight

  • 10kV impulse withstand (between coil and contacts)

  • Highly efficient magnetic circuit for high sensitivity 200mW

  • Extremely small footprint utilising PCB area

  • Gold contact plating versions on request

  • RoHS compliant

  • Safetyapprovals UL & CUL





No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF46F003HS1TF HONGFA PCB POWER RELAY 3VDC 5A SPNO HF46F/003-HS1TF 1A - Single Pole Normally Open 3VDC 200mW 3.9 5AMP 2.25 0.18 45 x (1�10%)
HF46F005HS1TF HONGFA PCB POWER RELAY 5VDC 5A SPNO HF46F/005-HS1TF 1A - Single Pole Normally Open 5VDC 200mW 6.5 5AMP 3.75 0.25 125 x (1�10%)
HF46F006HS1TF HONGFA PCB POWER RELAY 6VDC 5A SPNO HF46F/006-HS1TF 1A - Single Pole Normally Open 6VDC 200mW 7.8 5AMP 4.5 0.3 180 x (1�10%)
HF46F009HS1TF HONGFA PCB POWER RELAY 9VDC 5A SPNO HF46F/009-HS1TF 1A - Single Pole Normally Open 9VDC 200mW 11.7 5AMP 6.75 0.45 405 x (1�10%)
HF46F012HS1TF HONGFA PCB POWER RELAY 12VDC 5A SPNO HF46F/012-HS1TF 1A - Single Pole Normally Open 12VDC 200mW 15.6 5AMP 9 0.6 720 x (1�10%)
HF46F018HS1TF HONGFA PCB POWER RELAY 18VDC 5A SPNO HF46F/018-HS1TF 1A - Single Pole Normally Open 18VDC 200mW 23.4 5AMP 13.5 0.9 1620 x (1�10%)
HF46F024HS1TF HONGFA PCB POWER RELAY 24VDC 5A SPNO HF46F/024-HS1TF 1A - Single Pole Normally Open 24VDC 200mW 31.2 5AMP 18 1.2 2880 x (1�10%)
