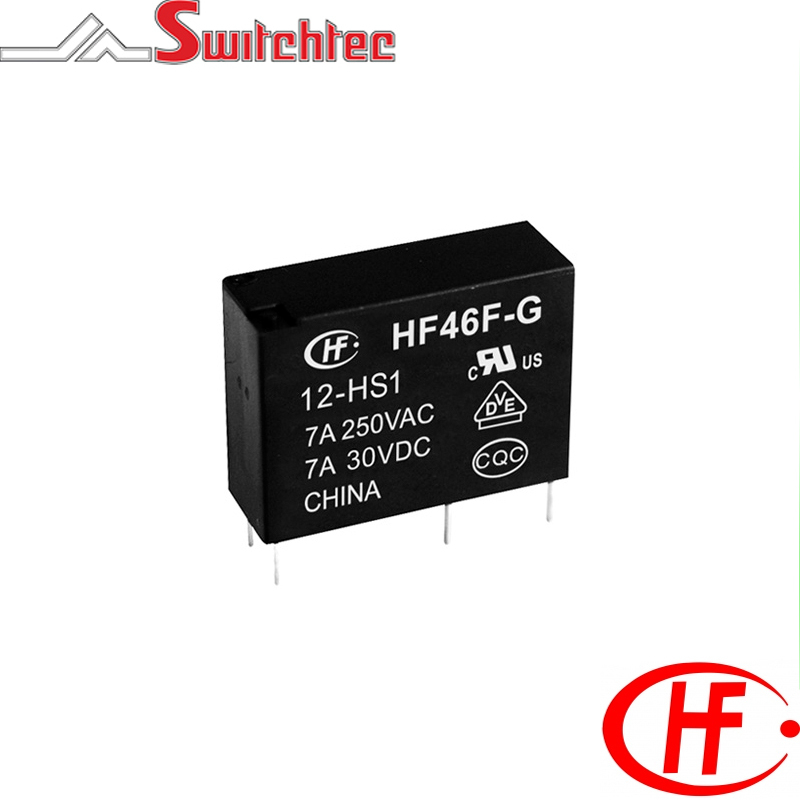

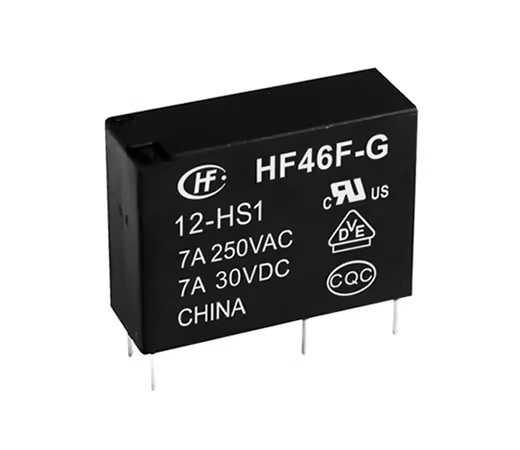

10 Amp 1 Pole Normally Open Relay - Standard Contacts

10 Amp 1 Pole Normally Open Relay - Standard Contacts


  • 10A Switching capability

  • 1 Form A contact

  • Wash tight

  • 10kV impulse withstand (betwe en coil and contacts)

  • Highly efficient magnetic circuit for high sensitivity 200mW

  • Extremely smallfootprint utilising PCB area

  • Contact materials AgSnO2

  • RoHS compliant

  • Safety approvals UL & CUL

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF46FG003HS1TF HONGFA PCB POWER RELAY 3VDC 10A SPNO HF46FG/003-HS1TF 1A - Single Pole Normally Open 3VDC 200mW 3.9 10AMP 2.25 0.18 45 x (1�10%)
HF46FG005HS1TF HONGFA PCB POWER RELAY 5VDC 10A SPNO HF46FG/005-HS1TF 1A - Single Pole Normally Open 5VDC 200mW 6.5 10AMP 3.75 0.25 125 x (1�10%)
HF46FG006HS1TF HONGFA PCB POWER RELAY 6VDC 10A SPNO HF46FG/006-HS1TF 1A - Single Pole Normally Open 6VDC 200mW 7.8 10AMP 4.5 0.3 180 x (1�10%)
HF46FG009HS1TF HONGFA PCB POWER RELAY 9VDC 10A SPNO HF46FG/009-HS1TF 1A - Single Pole Normally Open 9VDC 200mW 11.7 10AMP 6.75 0.45 405 x (1�10%)
HF46FG012HS1TF HONGFA PCB POWER RELAY 12VDC 10A SPNO HF46FG/012-HS1TF 1A - Single Pole Normally Open 12VDC 200mW 15.6 10AMP 9 0.6 720 x (1�10%)
HF46FG018HS1TF HONGFA PCB POWER RELAY 18VDC 10A SPNO HF46FG/018-HS1TF 1A - Single Pole Normally Open 18VDC 200mW 23.4 10AMP 13.5 0.9 1620 x (1�10%)
HF46FG024HS1TF HONGFA PCB POWER RELAY 24VDC 10A SPNO HF46FG/024-HS1TF 1A - Single Pole Normally Open 24VDC 200mW 31.2 10AMP 18 1.2 2880 x (1�10%)
