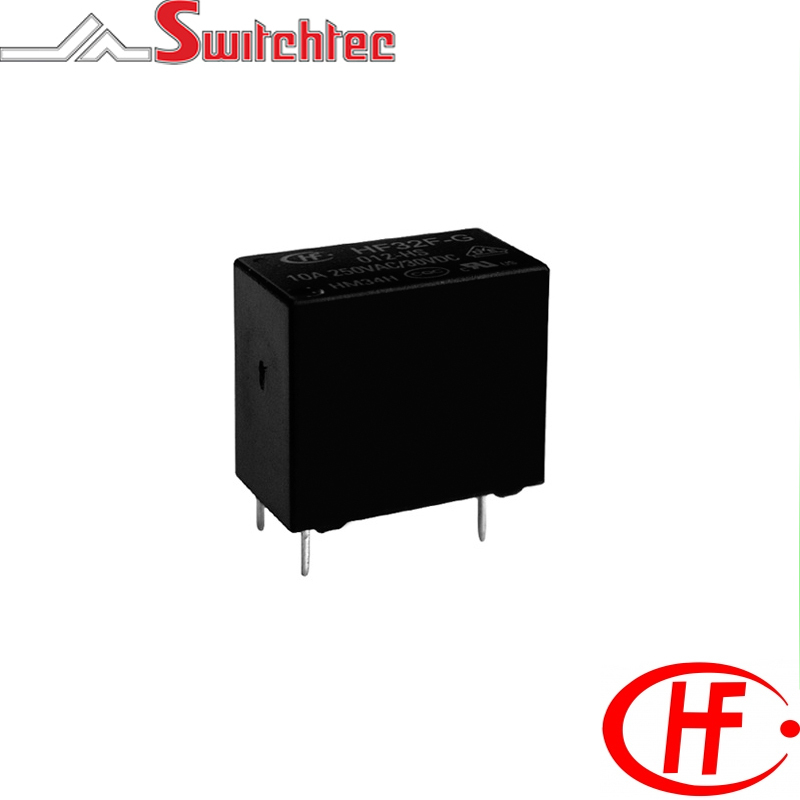

10 Amp 1 Normally Open - 1 Form A

10 Amp 1 Normally Open - 1 Form A


  • 10A switching capability

  • 1 Form A

  • Wash tight

  • 2.5Kv Dielectric strenght (between coils and contacts)

  • Contact material AgNi

  • RoHS compliant

  • Safety approvals UL/CUR & VDE

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF32FG003HST HONGFA PCB POWER RELAY 3VDC 10A 1NO HF32F-G/003-HST 1A - Single Pole Normally Open 3VDC 450mW 3.9 10AMP 2.5 0.15 20 x (1�10%)
HF32FG005HST HONGFA PCB POWER RELAY 5VDC 10A 1NO HF32F-G/005-HST 1A - Single Pole Normally Open 5VDC 450mW 6.5 10AMP 3.75 0.25 55 x (1�10%)
HF32FG006HST HONGFA PCB POWER RELAY 6VDC 10A 1NO HF32F-G/006-HST 1A - Single Pole Normally Open 6VDC 450mW 7.8 10AMP 4.5 0.3 80 x (1�10%)
HF32FG009HST HONGFA PCB POWER RELAY 9VDC 10A 1NO HF32F-G/009-HST 1A - Single Pole Normally Open 9VDC 450mW 11.7 10AMP 6.75 0.45 180 x (1�10%)
HF32FG012HST HONGFA PCB POWER RELAY 12VDC 10A 1NO HF32F-G/012-HST 1A - Single Pole Normally Open 12VDC 450mW 15.6 10AMP 9 0.6 320 x (1�10%)
HF32FG018HST HONGFA PCB POWER RELAY 18VDC 10A 1NO HF32F-G/018-HST 1A - Single Pole Normally Open 18VDC 450mW 23.4 10AMP 13.5 0.9 720 x (1�10%)
HF32FG024HST HONGFA PCB POWER RELAY 24VDC 10A 1NO HF32F-G/024-HST 1A - Single Pole Normally Open 24VDC 450mW 31.2 10AMP 18 1.2 1280 x (1�10%)
HF32FG048HST HONGFA PCB POWER RELAY 48VDC 10A 1NO HF32F-G/048-HST 1A - Single Pole Normally Open 48VDC 450mW 62.4 10AMP 36 2.4 5120 x (1�10%)
