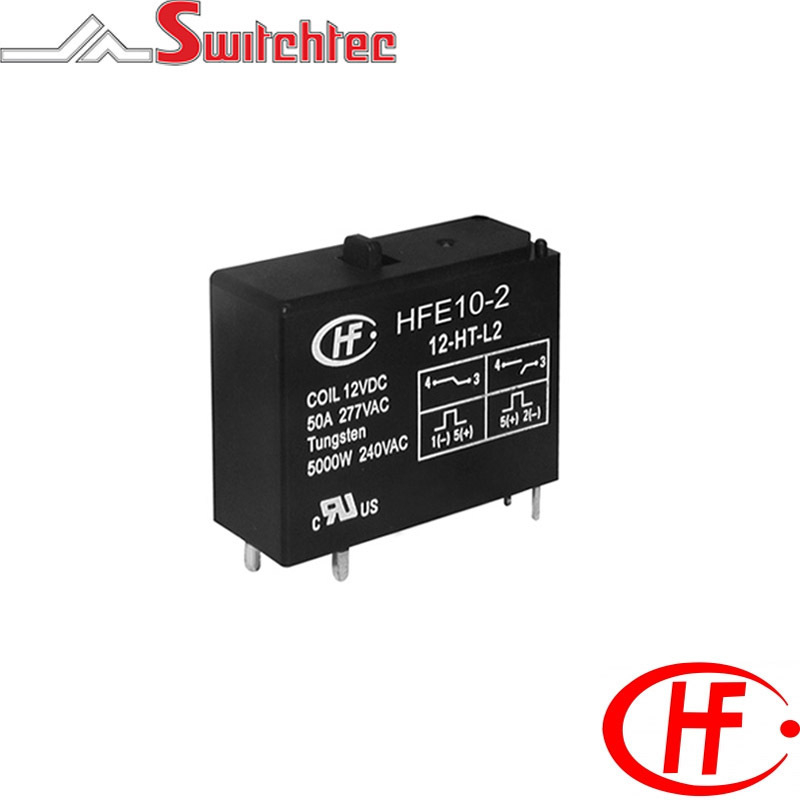

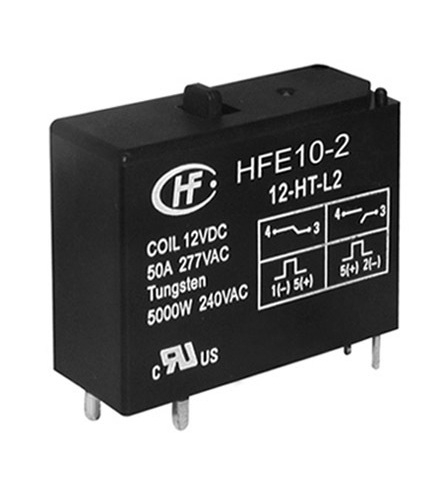

Double Coil Latching

Double Coil Latching



    • 50A 250VAC contact switching capacity



    • Lamp load up to 5000W



    • 1 Form B



    • Capacitor load up to 200uF (min inrush current at 500A/10us)



    • 4Kv dielectric strength between coil and contacts



    • Creepage distance 8mm



    • Standard and reverse polarity types available



    • Manual switch option



    • Contact material AgSn02



    • Wash tight available for the HFE101



    • RoHS compliant



    • Approvals UL & CUR



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Coil ? � 10% Set/Reset Voltage VDC Max Pulse Duration ms min. Price
HFE101005DSTL2 HONGFA LATCHING RELAY 5VDC 50A PCB HFE10-1/005-DST-L2 1B- Single Pole Normally Closed 5VDC 3000mW 6.5 50AMP 8.4 + 8.4 x (1�10%) 4 50
HFE101006DSTL2 HONGFA LATCHING RELAY 6VDC 50A PCB HFE10-1/006-DST-L2 1B- Single Pole Normally Closed 6VDC 3000mW 7.8 50AMP 12 + 12 x (1�10%) 4.8 50
HFE101009DSTL2 HONGFA LATCHING RELAY 9VDC 50A PCB HFE10-1/009-DST-L2 1B- Single Pole Normally Closed 9VDC 3000mW 11.7 50AMP 27 + 27 x (1�10%) 7.2 50
HFE101012DSTL2 HONGFA LATCHING RELAY 12DC 50A PCB HFE10-1/012-DST-L2 1B- Single Pole Normally Closed 12VDC 3000mW 15.6 50AMP 48 + 48 x (1�10%) 9.6 50
HFE101024DSTL2 HONGFA LATCHING RELAY 24DC 50A PCB HFE10-1/024-DST-L2 1B- Single Pole Normally Closed 24VDC 3000mW 31.2 50AMP 192 + 192 x (1�10%) 19.2 50
